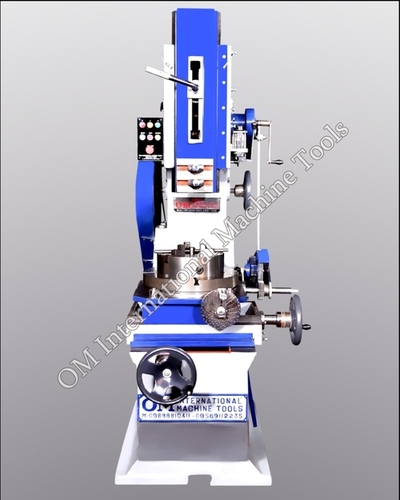

Gear Slotting Machine

This machine is used for slotting and planning of material for metallurgical industry. Our modernized infrastructure equipped with state-of-the-art machinery, helps us to manufacture and export Gear Slotting Machine. Our machine is used for cutting grooves, keys and slots of various shapes making regular and irregular surfaces. We use optimum quality mild steel and cast iron sourced from reputed vendors to manufacture this machine. Gear Slotting Machine can be used on any type of work where vertical tool movement is considered essential and advantageous.
Features:
- Easy installation
- High operational fluency
- Generates low noise
Technical Specification |
MODEL NO |
||||||
OMS - 200 |
OMS - 250 |
OMS - 300 |
OMS - 350 |
OMS - 400 |
OMS - 450 |
OMS - 500 |
|
Max. Length Of Stroke |
8' (200 MM) |
10' (250 MM) |
12' (300 MM) |
14' (350 MM) |
16'(400 MM) |
18' (450 MM) |
20' (500 MM) |
Length Of Ram |
20' |
30' |
30' |
40' |
42' |
42' |
52' |
Width Of Ram |
6' |
8' |
8' |
9' |
9' |
9.1/2' |
12' |
No. Of Speeds To Ram By Gear Box |
2 |
2 |
4 |
4 |
4 |
4 |
4 |
Max. Dia Of Work Admitted |
20 |
32 |
36 |
48 |
48 |
48 |
72 |
Max. Height Of Work Admitted |
7 |
9 |
11 |
18 |
22 |
22 |
24 |
Longitudinal Traverse Of Table |
9 |
15 |
18 |
24 |
24 |
24 |
36 |
Transverse Traverse Of Table |
10 |
12 |
15 |
18 |
18 |
18 |
24 |
Dia Of Rotary Table |
12 |
15 |
18 |
24 |
24 |
24 |
42 |
Power Required |
1 H.P. |
2 H.P. |
3 H.P. |
5 H.P. |
7.5 H.P. |
7.5 H.P. |
10 H.P. |
![]() |
